Ratchet Cable Cutters |
| |

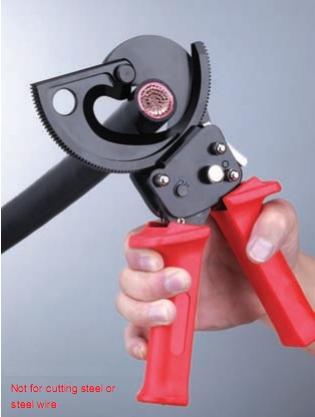

SH-300B
|
|
|
| |
|
|
|
|
|
| |
Cutting range: 300mm2max.
Cutting easily with forging blade and long lifetime
With safety lock |
|
Length |
230mm |
Weight |
0.95kg |
|
| |
|
|
| |
|
|
SH-325A |
|
SH-520A |
| |
|
|
|
|
|
| |
|
|
Cutting range: 240mm2 max.
Cutting easily with forging blade and long lifetime
Not for cutting steel or steel wire
With safety lock |
|
Cutting range: 400mm2 max.
Cutting easily with forging blade and long lifetime
Not for cutting steel or steel wire
With safety lock |
| |
|
|
Length |
260mm |
Weight |
0.7kg |
|
|
Length |
280mm |
Weight |
0.90kg |
|
| |
|
|
| |
|
|
SH-500B (Germany) |
|
|
| |
|
|
|
|
|
| |
Cutting range: 400mm2 max.
Cutting easily with forging blade and long lifetime
Not for cutting steel or steel wire
With safety lock |
| |
Length |
235mm |
Weight |
1.10kg |
|
| |
|
|
| |
|
|
J38 |
|
J40C |
| |
|
|
|
|
|
| |
|
|
Cutting range: 300mm2 max.
Cutting easily with forging blade and long lifetime
Not for cutting steel or steel wire
With safety lock |
|
Cutting range: 300mm2 max.
Cutting easily with forging blade and long lifetime
Not for cutting steel or steel wire
With safety lock |
| |
|
|
Length |
260 x 130 x 45mm |
Weight |
1.10kg |
|
|
Length |
235mm |
Weight |
1.10kg |
|
| |
|
|
| |
|
|
SH-765 (Germany) |
|
|
| |
|
|
Ratchet type cable cutter type SH-765, has been adopted ratchet driving unit in order to be operated by one hand only. Only one hand could cut cables easily due to very light weight. the cutter is applicable for cutting cu/al cables, single strand or multi-strands of cables.
Attention: Not for cutting steel or steel wire. |
|
|
| |
|
|
|
| |
|
|
Length |
310mm |
Weight |
0.93kg |
|
|
Cutting range: 400mm2 max |
| |
|
|
| |
|
|
LK-240 (Germany) |
|
|
| |
|
|
Ratchet type cable cutter type LK-240, has been adopted ratchet driving unit in order to be operated by one hand only. Only one hand could cut cables easily due to very light weight. the cutter is applicable for cutting cu/al cables, single strand or multi-strands of cables.
Attention: Not for cutting steel or steel wire. |
|
|
| |
|
|
Length |
240mm |
Weight |
0.58kg |
|
|
Cutting range: 240mm2 max |
| |
|
|
| |
|
|
LK-760L (Germany) |
|
LK-960 (Germany) |
| |
|
|
|
|
| |
|
Cutting range: 500mm2 max.
With ratchet device, energy saving when cutting
Not for cutting steel or steel wire |
|
| |
|
Length |
430mm |
Weight |
0.90kg |
|
| |
| |
LK-380 (Germany) |
| |
|
| |
|
Ratchet type cable cutter type LK-380, has been adopted ratchet driving unit in order to be operated by one hand only. Only one hand could cut cables easily due to very light weight. the cutter is applicable for cutting cu/al cables, single strand or multi-strands of cables. Attention: Not for cutting steel or steel wire. |
For cutting single strand and multiple strand copper and aluminum cable
Not for cutting steel or steel wire
Suitable for cables with steel sheath reinforcement
Cutting section is smooth, without burr
The shears can be opened to any cutting position
Can be used even in confined areas
Knife made of special steel |
| |
|
|
Cutting range: 380mm2 max |
|
Cutting range: 960mm2 max |
| |
|
|
Length |
330mm |
Weight |
0.75kg |
|
|
Length |
870mm |
Weight |
5.60kg |
|
| |
|
|
| |
|
|
J25 |
|
J25A |
| |
|
|
|
|
|
| |
|
|
Cutting range: for stressed steel wire, 150mm2 max. for ACSR,800mm2 max Not for cutting armored cable, copper and aluminum cable and steel wire, Knives can be sharpened or replaced. |
|
Cutting range: for steel wire, Ø25mm max. Not for cutting armored cable, copper and aluminum cable and ACSR, Knives can be sharpened or replaced. |
| |
|
|
Length |
730 x 110 x 40mm |
Weight |
4kg |
|
|
Length |
730 x 110 x 40mm |
Weight |
4kg |
|
| |
|
|
| |
|
|
J100 |
|
J130 |
| |
|
|
|
|
|
| |
|
|
Adjustable handles Cutting range: for aluminum armored cable, Ø130mm max. for copper armored cable, 3x300mm2 ,for copper and aluminum cable, Ø130mm max. Not for cutting ACSR, stressed steel wire and steel wire Knives can be sharpened or replaced. |
|
Adjustable handles Cutting range: for armored cable, Ø130mm max. for copper and aluminum cable, Ø130mm max. Not for cutting ACSR, stressed steel wire and steel wire Knives can be sharpened or replaced |
| |
|
|
Length |
490 x 270 x 50mm |
Weight |
6.3kg |
|
|
Length |
500 x 300 x 50mm |
Weight |
7.5kg |
|
| |
|
|
| |
|
|
J13 |
|
J14 |
| |
|
|
|
|
|
| |
|
|
Adjustable handles Cutting range: for ACSR, armored cable, copper and aluminum cable, Ø30mm(400mm2 ) max. Not for cutting stressed steel wire and steel wire Knives can be sharpened or replaced |
|
Adjustable handles Cutting range: for steel wire, Ø20mm max. Not for cutting ACSR, armored cable, copper and aluminum cable and stressed steel wire Knives can be sharpened or replaced. |
| |
|
|
Length |
340 x 130 x 40mm |
Weight |
1.8kg |
|
|
Length |
340 x 130 x 40mm |
Weight |
1.8kg |
|
| |
|
|
| |
|
|
J30 |
|
J33 |
| |
|
|
|
|
|
| |
|
|
Cutting range: for stressed steel wire, 100mm2 max. for ACSR, Ø30mm (630mm2 )max Not for cutting armored cable, copper and aluminum cable and steel wire Knives can be sharpened or replaced. |
|
Adjustable handles Cutting range: for steel wire, Ø33mm max. Not for cutting armored cable, copper and aluminum cable and stressed steel wire Knives can be sharpened or replaced. |
| |
|
|
Length |
400 x 160 x 55mm |
Weight |
3.5kg |
|
|
Length |
730 x 110 x 40mm |
Weight |
4kg |
|
| |
|
|
| |
|
|
J40 |
|
J50 |
| |
|
|
|
|
|
| |
|
|
Cutting range: for armored cable and copper and aluminum cable, Ø30mm (300mm2 ) max. Not for cutting stressed steel wire and steel wire Knives can be sharpened or replaced. |
|
Adjustable handles Cutting range: for armored cable, ACSR and copper and aluminum cable, Ø50mm max. Not for cutting stressed steel wire and steel wire Knives can be sharpened or replaced. |
| |
|
|
Length |
325 x 120 x 35mm |
Weight |
1.1kg |
|
|
Length |
340 x 130 x 40mm |
Weight |
1.8kg |
|
| |
|
|
| |
|
|
J75 |
|
J95 |
| |
|
|
|
|
|
| |
|
|
Adjustable handles Cutting range: for aluminum armored cable, Ø75mm max. or copper armored cable 3x120mm2 ,for copper and aluminum cable, Ø75mm max. Not for cutting stressed steel wire, steel wire and ACSR Knives can be sharpened or replaced. |
|
Adjustable handles Cutting range: for aluminum armored cable,Ø90mm max. for copper armored cable, 3x185mm2 ,for copper and aluminum cable, Ø90mm max. Not for cutting ACSR, stressed steel wire and steel wire Knives can be sharpened or replaced. |
| |
|
|
Length |
420 x 205 x 50mm |
Weight |
3.7kg |
|
|
Length |
490 x 270 x 50mm |
Weight |
6.3kg |
|
| |
|
|
| |
|
|
|
|
|
| |
|
